Rinstrum R323 Digital Indicator

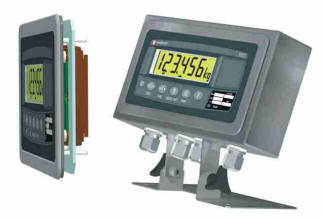

There are various models of the R323 series available; A/B/C/D:

A & B are Flush Mount Versions, DC input and suitable for panel & custom mounting applications as the slim design allows fitting into very restrictive spaces. The stainless steel bezel and front keypad provide sealing up to IP65 for use in either wet or dusty conditions.

C & D versions are supplied in a IP65 stainless steel housing with both DC & AC models available.

This indicator offers exceptional levels of performance and functionality by combining all the very latest advances in weighing technology into one compact package. A powerful 24 bit Sigma~Delta A/D converter ensures very stable and accurate weight readings are attained. The four layer, surface mount PCB has low power consumption and offers extreme durability even under the harshest operating conditions.

The utilisation of FLASH ROM allows the R323 to have its Firmware easily updated in the field to allow uploading of all the latest software enhancements - ensuring a long market life. The Rinstrum “RIN-LINK” is a dedicated optical data coupling that connects to the inbuilt IR port on the indicator display for PC access to all set-up and calibration functions.
